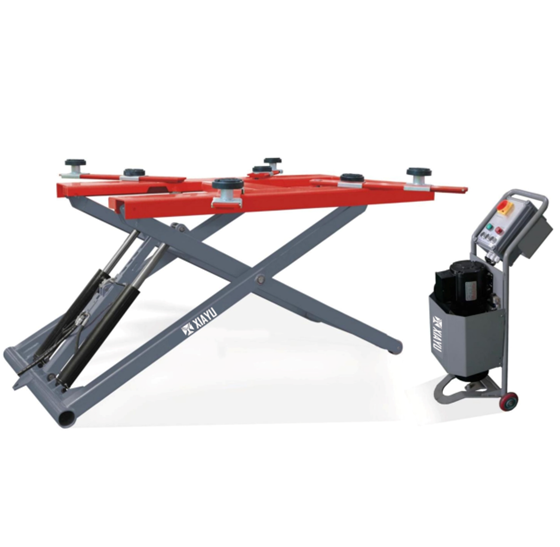

XY-YXJ-P30TA
technical parameters
model: XY-YXJ-P30TA
lifting capacity: 2700KG
lifting height: 1250MM
minimum height: 110MM
Lifting time: 30-50S
platform length: 1685MM
platform with: 1040MM
: 1900MM
Moto power: 2.2KW-380V/220V
Rated oil pressure: 24Mpa
weight: 450KG
Show Details
 |
 |
 |
||
| tube arm | Oil filling hole |
 |
 |
 |
||
| activity strengthening arm | Cylinder oil return system | Manual release/Electric release |
Dimensions
Note: Product pictures are for reference only. Produces different voltages and colors.
1. Pneumatic release: safe/reliable
2. Low initial height (110mm), no groove, integrated pulley
3. Coupling shaft drive: solid synchronization and lifting
4. Hydraulic system: imported valve/seal, stable and long life
5. If the power is off, manually descend
6. Upper/lower security alarm
7. Oil cylinder: top return oil, anti-rust
2. Low initial height (110mm), no groove, integrated pulley
3. Coupling shaft drive: solid synchronization and lifting
4. Hydraulic system: imported valve/seal, stable and long life
5. If the power is off, manually descend
6. Upper/lower security alarm
7. Oil cylinder: top return oil, anti-rust
