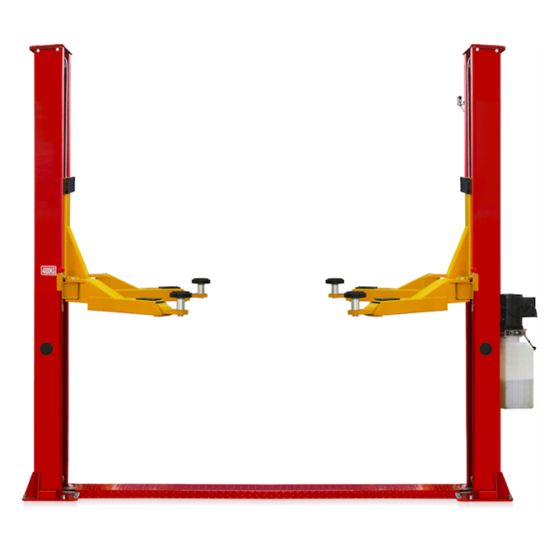

XY-YP2-35
technical parameters
model: XY-YP2-35
lifting capacity: 3500kg
maximum lifting height: 1900mm
minimum lifting height: 100mm
power: 2.2kw
oil pressure: 24Mpa
power supply: 220-240v/380v-415v
rise time: 50S
discard time: 40S
net weight/gross weight: 553/564kg
packing size: 2870x450x690mm
920x 27 0x 330mm
Show Details
dimension
Note: Product pictures are for reference only. Produced in different voltages and colors.
floor design, suitable for low roof car repair shop;
Using double cylinders, the chain is higher and stronger; stainless steel cable;
Manual locks on both sides are released;
Rubber pad to open the door protection;
Limit switch.
Using double cylinders, the chain is higher and stronger; stainless steel cable;
Manual locks on both sides are released;
Rubber pad to open the door protection;
Limit switch.
