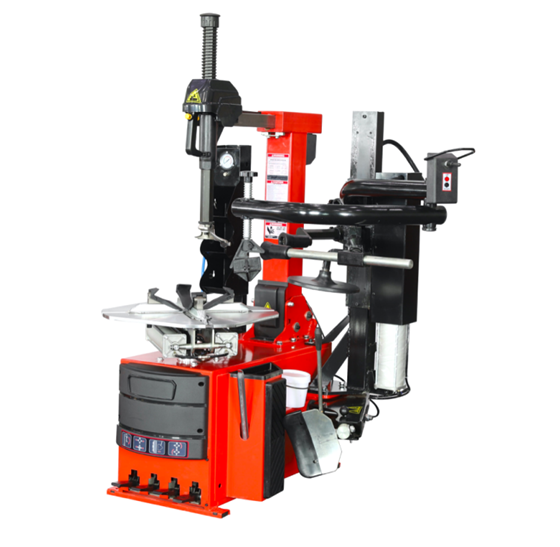

XY-TC606DS
Technical Parameter
Model:XY-TC606DS
Power Supply:110V/220V/380V
Motor Power:1.1/1.1/0.75KW
Working Air Pressure:8-10Bar
Tuntable rotation:7Rpm
Out Clamp: 10-20“
Inside Clamp: 13-24”
Rim width: 3-14”
Max. Wheel Diameter:1100MM
Net Weight: 285KG
Gross Weight: 315KG
Packing Dimension:1112x860x920MM
Helper arm packing size:1120x450x320MM
Display Details
Note: Products pictures are for references only. produce with different voltage and color.
1.Enhanced S41 mounting bar with better strength.
2.Clamping jaw is equipped with the protective sleeve , protection for the tires and rims.
3.Equipped with auto helper arm, mountiong and demounting tire more quicker and easier.
4.The clamping jaw is made of precision steel cast which is firm and durable.
5.Universal bead breaker,more suitable for operation.
6.Vertical inflation-tool box with elegant appearance.
7.Body design dignified,thick sheet material,strong rigidity.
2.Clamping jaw is equipped with the protective sleeve , protection for the tires and rims.
3.Equipped with auto helper arm, mountiong and demounting tire more quicker and easier.
4.The clamping jaw is made of precision steel cast which is firm and durable.
5.Universal bead breaker,more suitable for operation.
6.Vertical inflation-tool box with elegant appearance.
7.Body design dignified,thick sheet material,strong rigidity.
